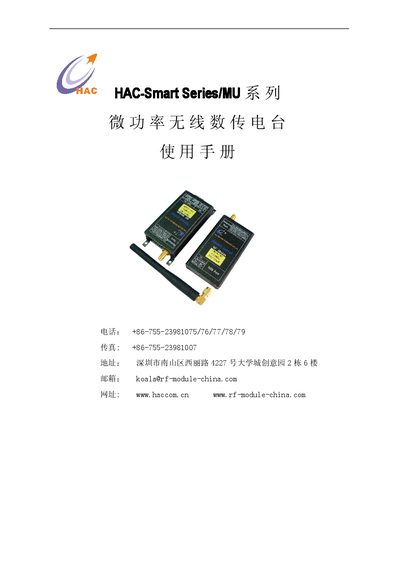

This manual covers the HAC-Smart Series low power wireless data radio, including model naming, indicator functions, DIP switch configuration, dimensions…
The HAC-Smart Series is a low power wireless data radio developed by Shenzhen Huatong Communication Technology Co., Ltd. It is based on standard wireless modules and adds a serial port conversion board and an aluminum alloy housing. The device supports various HAC standard wireless modules (such as UP, UM, UN, LM, LN series) and provides standard serial interfaces, status indicators, and parameter settings. This manual is written in Chinese.
The MU model requires a USB power source providing exactly 5 V.
The device allows selection of 8 different channels, numbered from 0 to 7.
The factory default configuration sets the parity to even (8E1).
