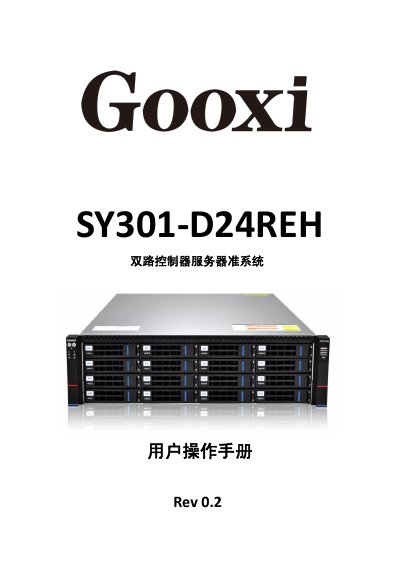

User operation manual for the Guoxin Hengyu SY301-D24REH dual‑controller server system, covering features, installation and maintenance.
The SY301-D24REH is a dual‑controller server system designed for high‑density, low‑power data‑center applications such as cloud computing, big‑data analysis and virtualization. It integrates a controller module, power module and hot‑swap drive bays within a 3U rack‑mount chassis.
The manual provides detailed instructions for system overview, interface specifications, controller module installation, chassis assembly, and rack mounting, along with safety warnings and BBU backup features for uninterrupted operation. This manual is written in Chinese.
| Processor | Intel Haswell E5‑2600V3 series, compatible with Intel Broadwell EP E5‑2600V4 series (Socket R3 LGA2011) |
|---|---|
| Power Supply | 770 W 1+1 redundant platinum‑efficiency power supply, hot‑swap replaceable |
| Dimensions | 3U rack‑mount, 675 mm × 448 mm × 132 mm (H × W × D) |
| Memory | Supports up to 1024 GB RDIMM or 2048 GB LRDIMM, DDR4 1600‑2400 MHz |
| Storage | Up to 24 hot‑swap 3.5" or 2.5" SAS2.0/SATA3.0 Gb/s drives plus 4 non‑hot‑swap 2.5" drives |
| Network Interfaces | 4 × 1 GbE ports (Intel I350‑AM4) and 2 × 10 GbE SFP+ ports (JL82599ES) |
| Operating System Support | Windows Server 2008 R2, Windows SBS 2011, Windows Server 2012/2012 R2, Red Hat Enterprise Linux, SUSE Enterprise Linux, Ubuntu, VMware ESXi, Microsoft Hyper‑V, Citrix XenServer, Linux KVM |
It uses a 770 W 1+1 redundant platinum‑efficiency power supply that supports hot‑swap replacement.
Supported OSes include Windows Server 2008 R2, Windows SBS 2011, Windows Server 2012/2012 R2, Red Hat Enterprise Linux, SUSE Enterprise Linux, Ubuntu, VMware ESXi, Microsoft Hyper‑V, Citrix XenServer and Linux KVM.
The system can accommodate up to 1024 GB of RDIMM or 2048 GB of LRDIMM DDR4 memory, with speeds up to 2400 MHz on Broadwell CPUs.
