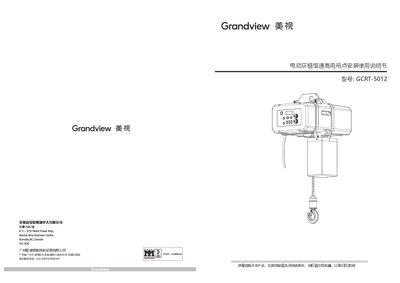

This guide provides installation steps, safety precautions, wiring, RS485 settings, and troubleshooting for the GCRT-5012 electric ring‑chain hanging point.
The GCRT-5012 electric ring‑chain hanging point is designed for commercial stage use. The manual details safety measures such as keeping a minimum 1.8 m clearance below the lowered point and ensuring the installation surface can support four times the combined weight of the device and the load.
Installation options include a hook‑type mount (A model) and a ceiling‑plate mount (B model) with specific dimensions and required anchoring strength. The document also explains RS485 communication setup, group and bit code configuration for multiple devices, and provides a troubleshooting table with error codes and corrective actions. This manual is written in Chinese.
| Power Consumption | 300 W |
|---|---|
| Operating Speed | 1.8 m/min |
| Dimensions (W×D×H) | 400 mm × 291 mm × 489 mm |
| Frequency | 22050 Hz |
The bottom of the hanging point must be at least 1.8 m above the floor to prevent accidental contact.
