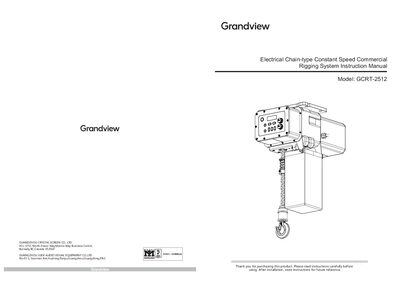

The manual provides installation, wiring, troubleshooting, specifications, and safety instructions for the Guangzhou Jude GCRT-2512 rigging system.
This instruction manual covers the setup and safe operation of the GCRT-2512 Electrical Chain-type Constant Speed Commercial Rigging System. It includes detailed wiring diagrams, group code configuration, and control interface information.
The guide also contains installation precautions, load‑bearing requirements, maintenance tips, technical specifications, and troubleshooting procedures to help users achieve reliable performance on stage and other commercial applications.
| Size | W444 x D290 |
|---|---|
| Ceiling opening size | φ 175 mm |
| Loading capacity | 250 kg |
| Max dropping distance | 12 m |
| Input voltage | 220 V / 50 Hz |
| Power rating | 300 W |
| Lifting speed | 4 m/min |
| Control interface | RS‑485, Dry Contact, Wireless, Wall Switch |
Send two codes at the same time, then restart the power to reset the system.
The load‑bearing requirement is four times the weight of the lifting point and stage equipment.
Apply anti‑rust oil regularly and keep the chain clean with a soft brush.
