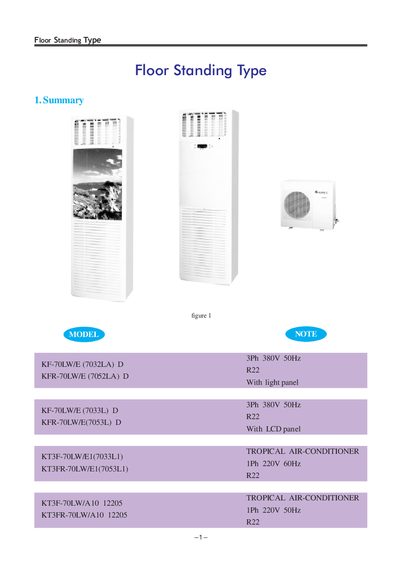

Technical service manual for the Gree KF-70LW/E (7032LA) D floor‑standing air‑conditioner with specs, parts list, installation and circuit diagrams.
This service manual provides detailed technical specifications, dimensions, and performance data for the Gree KF-70LW/E (7032LA) D floor‑standing air‑conditioner. It includes cooling and heating capacities, power requirements, fan speeds, noise levels, and refrigerant type.
The document also contains exploded views and spare‑parts lists for indoor and outdoor units, step‑by‑step installation guidance, circuit diagrams, and a PCB function manual to assist service engineers and technicians in troubleshooting and maintenance.
| Cooling capacity | 7000 W |
|---|---|
| Heating capacity | 7400 W (9600 W max) |
| Power supply | 1Ph 220V 50Hz R22 |
| Fan speed | 385 rpm (low) – 315 rpm (high) |
The unit stops when the timer for turn‑on is activated; when the set time arrives, the controller turns the unit on. The interval can be set in 0.5‑hour steps, with a range of 0.5 to 24 hours.
When the fresh‑air button is pressed, the indoor unit fan motor runs to supply fresh air; pressing the button again stops the fan. The function is unavailable when turned off.
Yes. Pressing the anion button once activates the anion function and runs the indoor fan motor; pressing it again deactivates it. The function is unavailable when turned off.
During heating, if the room temperature is within the set range, the fan runs at low speed; if the temperature is 3 °C below the set point, it runs at medium speed; if more than 3 °C below, it runs at high speed.
