Gowinsemi GW1NS Series FPGA Schematic Design Guide

This manual provides schematic design guidelines for Gowinsemi GW1NS, GW1NSR, GW1NSE, and GW1NSER series FPGAs, covering power, JTAG, MSPI, clocks, and…

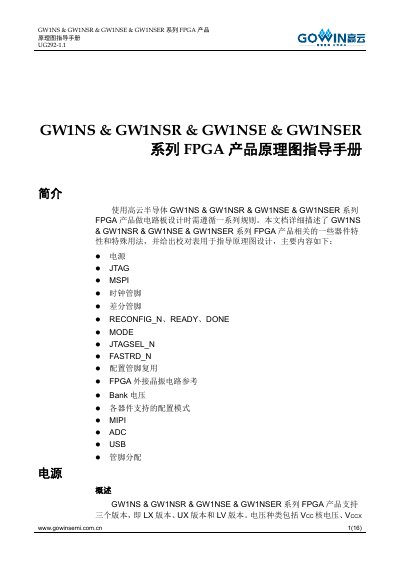

Gowinsemi GW1NS Series FPGA Schematic Design Guide - cover page
Brand
Gowinsemi
Category
Other Electronics
Document type
User Manual
Language
Chinese
Pages
17
File format
PDF
File size
606 KB
Published
16 October, 2026
Updated
16 October, 2026
MD5 checksum
BEF4E48661EBE1F0892DADC57D644FD7

About this manual

This document serves as a schematic design guide for the Gowinsemi GW1NS, GW1NSR, GW1NSE, and GW1NSER series of FPGA products. It details specific device characteristics and special usage rules required for circuit board design.

The guide covers essential topics including power supply requirements for different versions (LX, UX, LV), JTAG and MSPI configuration interfaces, clock pin definitions, differential signaling standards, and configuration control signals such as RECONFIG_N, READY, and DONE. This manual is written in Chinese.

What's inside

  • Power Supply
  • JTAG Interface
  • MSPI Configuration
  • Clock Pins
  • Differential Pins
  • Configuration Signals
  • MODE Selection
  • Pin Assignment
  • External Crystal Circuit
  • Bank Voltage

Specifications

Core Voltage (VCC)1.14V to 1.26V
UX Version VCCX Min2.375V
Power Rise Slope0.6mV/μs ~6mV/μs
RECONFIG_N Pulse Width25ns

Frequently asked questions

What is the function of the RECONFIG_N pin?

It acts as a reset function for FPGA programming configuration; pulling it low prevents any configuration operations.

What does the DONE signal indicate?

It indicates that the FPGA configuration has been successfully completed.

How is the configuration mode selected?

The configuration mode is selected via the MODE0, MODE1, and MODE2 signals.
