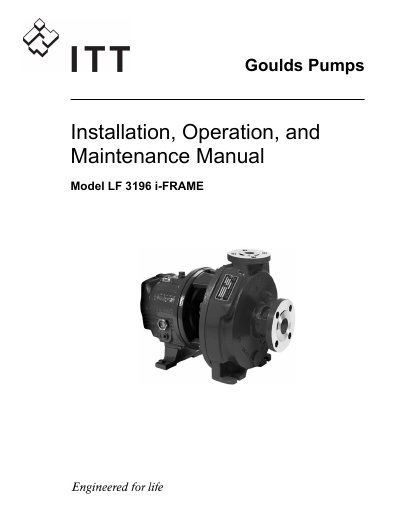

Goulds Pumps LF 3196 i-FRAME Installation Operation and Maintenance Manual

About this manual

This document serves as the official Installation, Operation, and Maintenance Manual for the Goulds Pumps Model LF 3196 i-FRAME. It provides comprehensive instructions for the safe handling, installation, and commissioning of the unit, including specific procedures for baseplate mounting, pump-to-driver alignment, and coupling installation. The manual also details the operation of the integrated i-ALERT Condition Monitor system.

What's inside

• Introduction and Safety
• Product Description
• Installation
• Commissioning, Startup, Operation, and Shutdown
• Maintenance
• Disassembly
• Reassembly
• Troubleshooting
• Parts Listings and Cross-Sectional Drawings

Frequently asked questions

What is the purpose of this manual?

The manual provides necessary information for the installation, operation, and maintenance of the product.

What safety measures must be taken regarding the product's pressure?

All necessary measures must be taken to avoid over-pressurization because any pressure-containing device can explode, rupture, or discharge its contents if over-pressurized.
