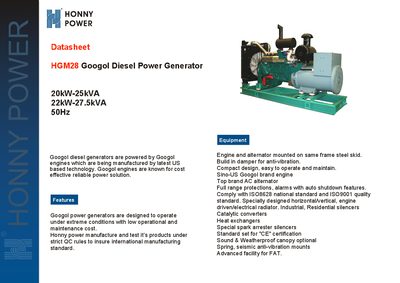

The Googol HGM28 diesel generator datasheet provides specifications for 20‑25 kW prime output, engine model B170G1, and performance parameters.
The HGM28 is a diesel‑powered generator from Googol, designed for industrial and residential use. It delivers a prime output of 20 kW (25 kVA) and a standby output of 22 kW (27.5 kVA) at 400 V, 50 Hz, with a 0.8 power factor.
The generator is built around a B170G1 four‑cylinder engine (2.77 L displacement) and a top‑brand AC alternator. Key features include anti‑vibration mounts, full protection alarms, optional weather‑proof canopy, and compliance with ISO 9001 and national standards.
| Prime Output | 20 kW / 25 kVA |
|---|---|
| Standby Output | 22 kW / 27.5 kVA |
| Rating Power Factor | 0.8 |
| Rating Speed | 1500 rpm |
| Rating Voltage | 400 V |
| Engine Model | B170G1 |
| Engine Displacement | 2.77 L |
| Number of Cylinders | 4 |
| Generator Weight | 700 kg |
| Fuel Consumption (full load) | 75 % of g/kW·hr |
| Efficiency @ 0.8 PF | 84.0 % |
| Exhaust Temperature | 610 °C |
The HGM28 provides a prime output of 20 kW (25 kVA).
The standby output is rated at 22 kW (27.5 kVA).
It uses the B170G1 engine.
The generator is rated for 400 V.
