The Gongchengbao IPC-1800Plus manual provides safety guidelines, setup steps, operation instructions, and technical specifications for the IP network video…

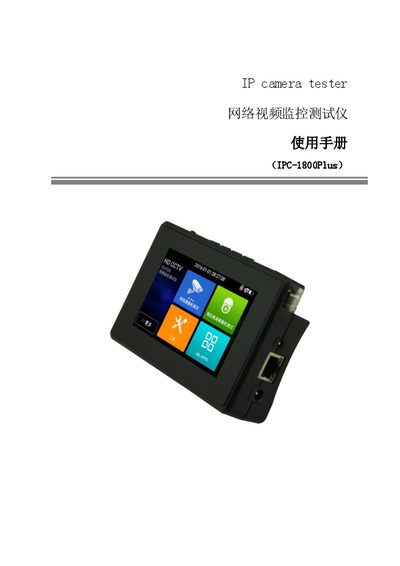

This manual introduces the Gongchengbao IPC-1800Plus, a handheld tester for IP and analog video surveillance cameras. It describes the device’s 4‑inch IPS touch screen, built‑in PoE and DC12 V power outputs, battery operation, and a range of testing functions such as H.265 main‑stream playback, ONVIF testing, and PTZ control.
The document covers safety precautions, detailed connection procedures, menu navigation, and technical parameters. It also provides troubleshooting tips, battery charging instructions, and specifications for power output, display, networking, and environmental limits. This manual is written in Chinese.
| Display | 4‑inch IPS capacitive touch screen, 800×480 resolution |
|---|---|
| Network Port | RJ45 10/100M/1000M auto‑negotiation |
| DC12V Output | 12 V 3 A continuous output |
| Battery | 7.4 V 2400 mAh polymer lithium, 4‑5 h charge, ~8 h runtime |
| Operating Temperature | -10 °C to +50 °C |
| Dimensions | 126 mm × 83 mm × 33 mm, 0.32 kg |
The built‑in 7.4 V 2400 mAh battery provides about 8 hours of use after a 4‑5 hour charge.
Yes, it delivers a continuous 12 V output at up to 3 A.
