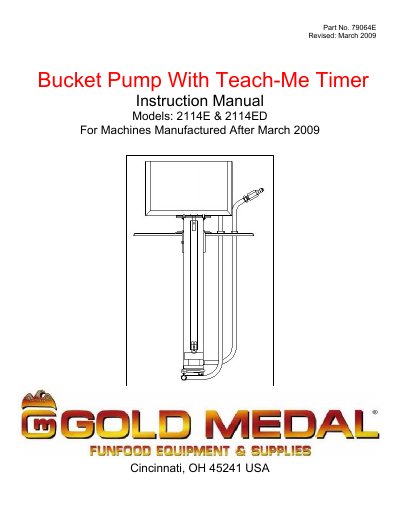

This manual provides installation, operation, cleaning, and maintenance instructions for Gold Medal 2114E and 2114ED bucket pumps used in popcorn machines.
This instruction manual covers the installation and operation of the Gold Medal 2114E and 2114ED bucket pumps, which are designed for use in popcorn machines manufactured after March 2009. The document details electrical requirements, operating procedures for both standard and programmable timer modes, and specific steps for cleaning and maintaining the unit.
| Voltage | 120 Volts / 60 Hz |
|---|---|
| High Heat Cycle | 20 minutes |
| Factory Oil Quantity | approximately 4 ounces (120 ml) |
| Warranty Period (Labor) | six (6) months |
| Warranty Period (Parts) | two (2) years |
The High Heat Cycle is factory set at 20 minutes.
Hold the Oil Dispense push button down while turning on the Oil System Master switch, then continue holding the button for 5 seconds.
No, the 2114ED cannot be used as a replacement for the model 2114D.
