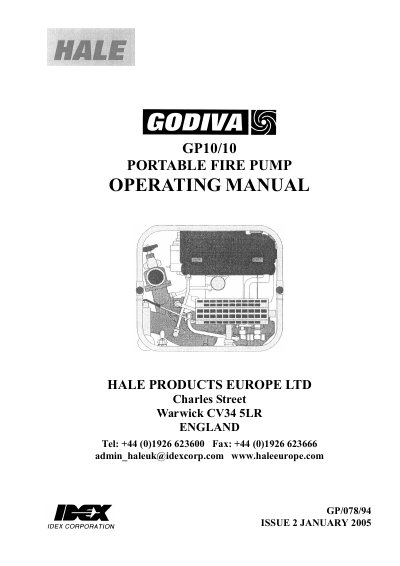

Operating manual for the Godiva GP10/10 portable fire pump, covering safety, preparation, starting, running, priming, and maintenance procedures.
This document serves as the operating manual for the Godiva GP10/10 Portable Fire Pump. It provides essential general data regarding the Honda BF45A engine and the single-stage centrifugal pump unit, including dimensions, weights, and specific component details like the spring-loaded gland seal.
The guide outlines comprehensive procedures for the safe operation of the pump, including environmental protection guidelines, health and safety precautions, and recommended lubricants. It details step-by-step instructions for preparing the unit, starting the engine (including manual backup), running the engine, priming from open water or hydrant pumping, and protecting against frost.
| Engine Model | Honda BF45A (Modified) |
|---|---|
| Configuration | 3-cylinder 4-stroke, OHC vertical crankshaft |
| Capacity | 808cc (49.4 cu.in.) |
| Rated Power RPM | 6600 r.p.m. |
| Fuel Tank Capacity | 14 litres |
| Oil Sump Capacity (With Filter) | 2.6 litres |
| Cooling Water Capacity | 5.0 litres |
| Pump Type | Single-stage, centrifugal |
| Rated Output | 1,000 litres at 10 bar and 3 m lift |
| Weight (With Battery, Oil Coolant and Fuel) | 112 kg |
A minimum differential pressure of 3 bar must be maintained in the pump unit.
An Ethylene-Glycol base type anti-freeze is recommended.
No, the pump can be run on 4-star fuel but not for sustained periods as damage to exhaust valves and seats can result.
A low-maintenance 12 Volt 18 Amp Hr battery with negative earth is used.
