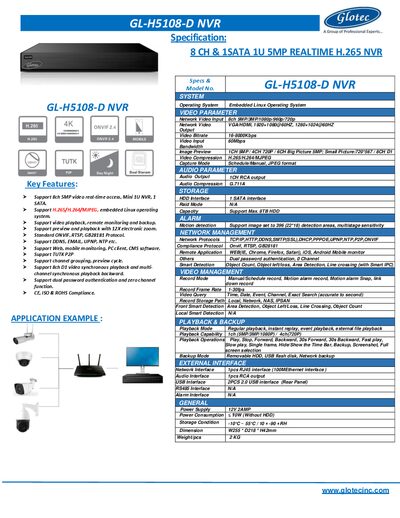

The GLotec GL-H5108-D NVR is an 8‑channel 5 MP video recorder with H.265/H.264 compression, embedded Linux OS, and multiple network protocols.
The GL-H5108-D is a compact 1‑U network video recorder that supports up to eight 5 MP video streams in real time. It runs an embedded Linux operating system and offers H.265, H.264, and MJPEG compression, with support for ONVIF, RTSP, GB28181, DDNS, and other network services.
Key specifications include a single SATA interface for up to 8 TB storage, dual‑password authentication, smart detection features (object count, area detection, line crossing), and a range of video output options (VGA/HDMI). The unit operates on a 12 V 2 A power supply, measures 255 mm × 218 mm × 42 mm, and weighs about 2 kg.
| Channels | 8 |
|---|---|
| Maximum Video Resolution | 5 MP |
| Video Compression | H.265 / H.264 / MJPEG |
| Power Supply | 12 V 2 A |
| Dimensions (W×D×H) | 255 mm × 218 mm × 42 mm |
| Weight | 2 kg |
| Network Protocols | ONVIF, RTSP, GB28181, TCP/IP, HTTP, DDNS, SMTP, DHCP, PPPoE, UPNP, NTP, P2P |
It supports up to 8 video channels.
The recorder supports H.265, H.264, and MJPEG compression.
It can accommodate a hard drive up to 8 TB via its SATA interface.
It supports ONVIF, RTSP, GB28181, TCP/IP, HTTP, DDNS, SMTP, DHCP, PPPoE, UPNP, NTP, and P2P.
