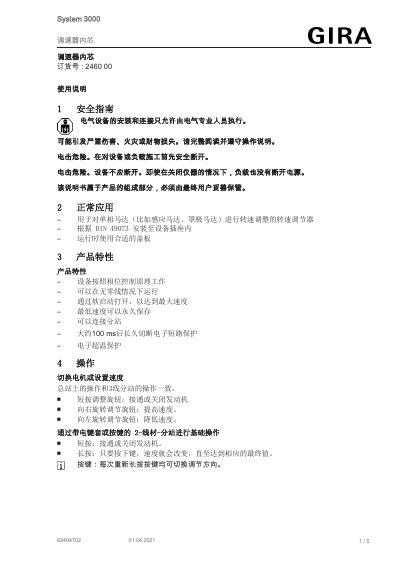

The Gira System 3000 2460 00 speed controller core user manual provides safety guidelines, installation instructions, operation steps, technical data, and…
This manual explains the safe installation and wiring of the System 3000 speed controller core (order number 2460 00). Only qualified electrical personnel may perform the installation, and all power must be disconnected before work. The device operates on phase‑control principle and can run without a neutral line.
The guide covers how to adjust speed, set minimum speed, reset over‑temperature and short‑circuit protection, and provides technical specifications such as rated voltage, power consumption, and maximum motor current. Troubleshooting tips and warranty information are also included. This manual is written in Chinese.
| Rated voltage | AC 230 V~ |
|---|---|
| Power frequency | 50 / 60 Hz |
| Standby power | < 0.5 W |
| Maximum power loss | 4 W |
| Maximum motor current (Imax) | 1.8 A |
| Maximum switch current | 60 mA … 1.8 A |
| Ambient temperature range | -5 °C … +45 °C |
| Maximum cable length | 100 m |
Only qualified electrical personnel may install and connect the device, and they must disconnect power and cover live parts before work.
