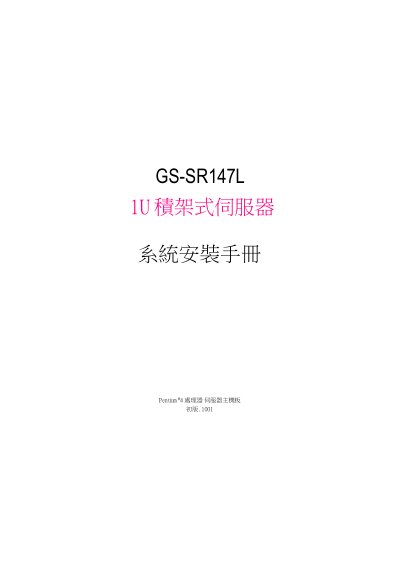

Installation guide for the Gigabyte GS‑SR147L 1U rack‑mount server motherboard.
This guide provides step‑by‑step instructions for installing the Gigabyte GS‑SR147L server motherboard in a 1U rack chassis. It covers CPU mounting, memory module installation, PCI/PCI‑X slot configuration, power‑supply connections, and front‑panel LED functions.
The document also lists the hardware specifications, supported processors, memory types, I/O connectors, and BIOS management features such as IPMI 1.5, Wake‑On‑LAN, and ACPI power states. This manual is written in Chinese.
| Memory Slots | 4 × DDR sockets, up to 4 GB total |
|---|---|
| Memory Type | Un‑buffered DDR 266/333/400 DIMM |
| ECC Capability | Single‑bit error correction, multiple‑bit error detection |
| PCI‑X Slots | 2 × 64/66 MHz add‑on slots (3.3 V) |
| Network Interface | Intel® 82541GI & 82547GI Gigabit Ethernet |
| Physical Dimensions | 427.5 mm × 521 mm × 42.6 mm |
