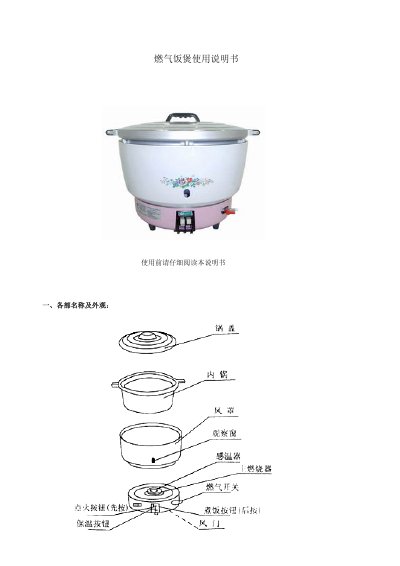

Chinese user manual for the GF20Y gas rice cooker series, covering specifications, installation, operation, safety, maintenance and troubleshooting.
This manual provides detailed information about the gas rice cooker, including part names, technical specifications, features, and recommended applications. It also explains how to install the cooker safely and how to operate it for cooking rice and other foods.
Safety precautions, regular maintenance tips, and a troubleshooting guide are included to help users keep the appliance in good condition and resolve common issues such as gas leaks or ignition problems. This manual is written in Chinese.
| Model | GF20Y.10L - A / GF20Y.7L - A |
|---|---|
| Gas Type | Liquefied petroleum gas |
| Rated Gas Pressure | 2.8 kPa |
| Rated Heat Load | 8 kW (10 L model) / 5.6 kW (7 L model) |
| Dimensions (cm) | 51 × 51 × 43 (10 L) / 47.5 × 47.5 × 41 (7 L) |
| Net Weight (kg) | 17 kg (10 L) / 19 kg (7 L) |
| Ignition Method | Piezoelectric spark |
| Gas Hose Inner Diameter | Φ9.5 mm |
| Maximum Cooking Capacity | 10 L (8.5 kg rice) / 7 L (6 kg rice) |
Press the ignition button repeatedly until a flame appears, then place the inner pot and start cooking.
Immediately close the gas supply, open windows to ventilate, and avoid operating any electrical devices until the leak is resolved.
Use neutral dish soap and a soft cloth; do not wash other components with water.
Use a soft‑type gas‑specific rubber hose with an inner diameter of 9.5 mm and secure it with a clamp.
