4CH H.264 Multiplex DVR R040191A User Manual

This user manual covers installation, operation, menu setup, and specifications for the 4CH H.264 Multiplex DVR (P/N: R040191A).

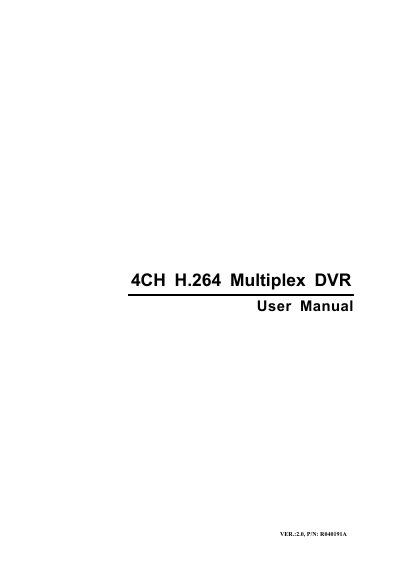

4CH H.264 Multiplex DVR R040191A User Manual - cover page
Brand
Generic
Category
Digital Video Recorder
Document type
User Manual
Language
English
Pages
47
File format
PDF
File size
2.3 MB
Published
13 October, 2026
Updated
13 October, 2026
MD5 checksum
941A21298F8B9E86626CD82B2F2ECC13
PDF
4CH H.264 Multiplex DVR R040191A User Manual PDF

About this manual

The document serves as a comprehensive guide for the 4CH H.264 Multiplex DVR, model R040191A. It details features such as dual streaming, built-in VGA output, and support for 3G/GPRS mobile monitoring. The manual provides instructions for main menu operations, including quick setup, network remote control, playback modes, and PTZ control.

What's inside

  • Features
  • Main Menu Operation
  • Installation
  • Basic Operation and Menu Setup
  • Search & Backup
  • Specifications
  • Network Surveillance

Specifications

Video Input4CH BNC
Video Output1CH BNC SPOT, 1CH BNC VGA
Video CompressionH.264
HDD SupportSATA HDD x1 (Max. 1TB each)
USB Ports2 ports
Power SourceDC12V
Operating Temperature5 ℃ ~ 40℃

Frequently asked questions

What is the default username and password for the DVR?

The default user name is admin and the password is 123456.

Does the DVR support mobile phone monitoring?

Yes, it supports 3G/GPRS mobile phone monitoring.

What are the available playback speeds?

Playback speeds include fast forward/backward at 2x to 64x and slow forward/backward at 1/2x to 1/16x.
