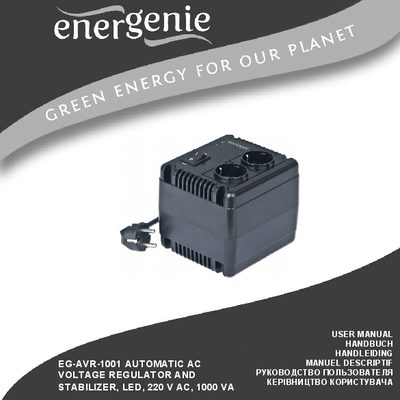

The Gembird EG-AVR-1001 user manual explains features, specifications, warranty and disposal for the automatic AC voltage regulator and stabilizer.
This manual provides an overview of the EG-AVR-1001 automatic AC voltage regulator and stabilizer, describing its key features such as automatic voltage regulation, pure sinusoidal output, LED status indication and built‑in protections. It also lists the technical specifications, including input voltage range, output power and environmental limits.
Additional sections cover warranty conditions (36‑month warranty), proper waste disposal instructions, and contact information for Gembird support centers across Europe.
| Technology | transformer, relay type |
|---|---|
| Input voltage | 140 … 270 V AC |
| Input frequency | 50 Hz |
| Output voltage | 220 V AC ± 8 %, sinusoidal waveform |
| Output power | 1000 VA (600 W) |
| Efficiency | 98 % |
| Sockets | IEC input and IEC output socket with Schuko input power cord |
| Phase | single phase |
| Display | LED type |
| Circuit protection | circuit breaker |
| Operating temperature | 0 … 40 °C |
| Storage temperature | -15 … 45 °C |
| Operating relative humidity | 10 … 102 %RH, non‑condensing |
The warranty period is 36 months from the date of sale to the end user.
It includes short‑circuit, over‑voltage, over‑load and over‑heating protection.
The device operates with an input voltage of 140 V to 270 V AC.
Do not discard it with household waste; follow local e‑waste collection guidelines.
