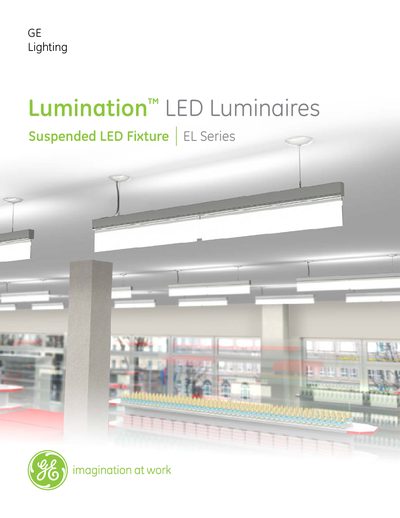

The GE Lighting EL Series Suspended LED Fixture is a minimalist, transparent luminaire with Intrinsx™ technology, offering high efficiency and flexible…
The EL Series Suspended LED Fixture provides a thin, transparent design that appears to float, making it ideal for conference rooms, open offices, lobbies, and retail spaces. Its minimalist aesthetic combines with high‑performance LED optics to deliver uniform white light.
Key features include GE Intrinsx™ optical technology, universal 120‑277 V input, 0‑10 V & DALI dimming, multiple mounting options (suspension cable with remote driver, surface‑mount driver, Whitecroft iTrack), and a 5‑year limited warranty. The fixture is recyclable, lead‑free, and meets IP30 and IK3 ratings.
| Delivered Light Output (4') | 6200‑6900 Lm |
|---|---|
| System Input Power (4') | 71 W |
| Efficacy | 90‑92 LPW |
| Input Voltage | 120‑277 V |
| Standard Dimming Control | 0‑10 V & DALI |
| Lifetime Rating | L85 @ 50,000 h |
| IP Rating | IP30 |
The fixture comes with a 5‑year limited warranty.
It can be mounted using suspension cables with a remote driver enclosure, suspension cables with a surface‑mount driver enclosure, or a Whitecroft iTrack mount.
The fixture operates on a universal 120‑277 V input.
It supports 0‑10 V and DALI dimming protocols.
