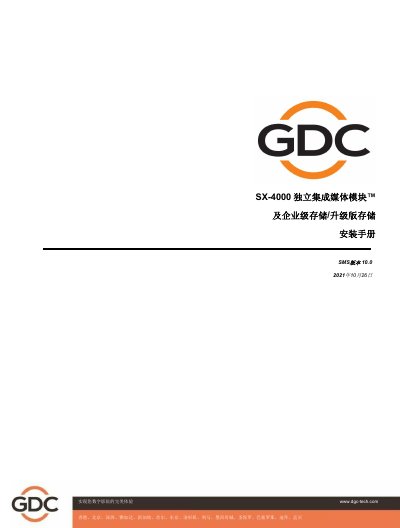

This manual provides installation instructions for the GDC SX-4000 Standalone Integrated Media Module and Enterprise Storage/Upgrade, covering setup…
The GDC SX-4000 Standalone Integrated Media Module™ (IMB) is designed to deliver a perfect digital cinema experience. This installation manual covers the setup of the SX-4000 unit itself as well as the optional Enterprise Storage or Enterprise Storage Upgrade modules.
The guide details how to install the device into projectors, configure network settings for IMB integration and service tampering clearance, and set up automation with various equipment including Christie, NEC, Barco projectors, Dolby devices, and USL systems. It also includes steps for importing content, configuring audio and subtitles, and performing post-installation tests. This manual is written in Chinese.
| Supported Hard Drive Type | 3.5-inch SATA |
|---|---|
| Enterprise Storage Dimensions (WxDxH) | 483 x 330 x 89 mm |
| Enterprise Storage Upgrade Dimensions (WxDxH) | 483 x 330 x 123.4 mm |
| Software Version Required | SMS 10.0 |
The server supports MPEG2, JPEG2000, Scope, Flat, and 3D file formats.
You should use light, curtain, sound, and fire alarm test cues to verify server activation.
The minimum voltage for VinHigh is 3.5 volts.
