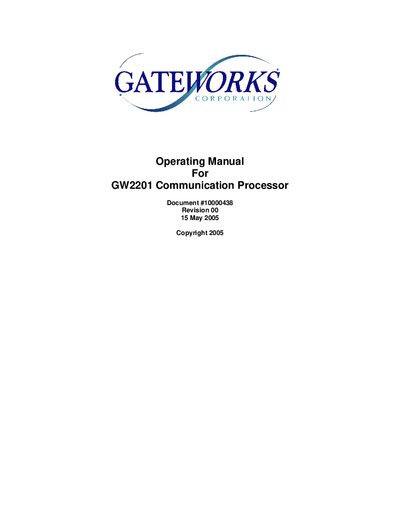

The Gateworks GW2201 Communication Processor Operating Manual provides product description, features, installation steps, specifications, and support…
The GW2201 is a serial communication expansion module that adds eight serial ports (four RS232 and four RS422/485) to a Mini‑PCI expansion site. It includes a 16550‑compatible octal serial controller and an internal charge pump that generates a 5 V supply while using only 3.3 V from the Mini‑PCI slot.
The manual covers an introduction to the product, detailed feature lists, functional block diagrams, configuration and installation procedures, connector pin assignments, full electrical/mechanical/environmental specifications, and customer‑support information such as warranty and return‑for‑repair policies.
| Operating Voltage | 3.0 VDC – 3.6 VDC |
|---|---|
| Input Current | Typical 0.1 A |
| Dimensions (L × W) | 2.35 in × 2.00 in (59.6 mm × 50.95 mm) |
| Height | 0.33 in (8.5 mm) |
| Weight | 0.7 oz |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | < 95 % at 40 °C |
The standard hardware warranty is one year from the date of purchase.
