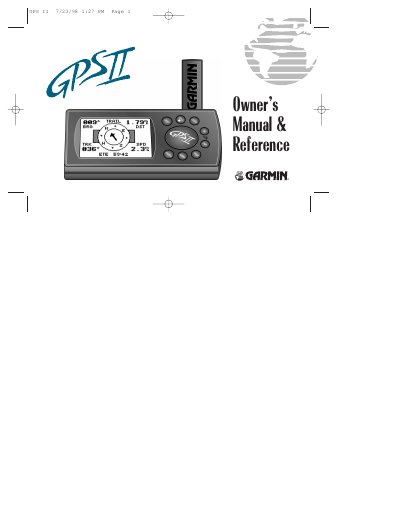

The Garmin GPS II owner’s manual provides setup, operation, and technical specifications for the handheld navigation device.
This manual introduces the Garmin GPS II, a compact handheld navigator for outdoor use. It is organized into three main sections: “Read Me First!” for initial setup, “Getting‑started Tour” for basic operation, and “Reference” for advanced features and detailed specifications.
The document also includes appendices covering battery replacement, mounting instructions, wiring and interface details, and a warranty statement. Throughout, safety cautions, FCC compliance notes, and usage guidelines are provided to ensure reliable performance.
| Position Accuracy | 5-10 meters (16-33 ft.) with DGPS corrections |
|---|---|
| Velocity Accuracy | 0.1 knot RMS steady state |
| Power Input | Four 1.5 V AA batteries or 10‑36 VDC |
| Current Consumption | 0.16 A max |
| Battery Life | Up to 15 h normal mode, up to 20 h battery‑saver mode |
| Interfaces | NMEA 0183 version 2.0, RS‑232 |
| Antenna | Detachable with standard BNC connector |
The GPS II requires at least four satellites to provide a three‑dimensional (3‑D) fix.
It runs on four 1.5 V AA batteries or can be powered from a 10‑36 VDC external source.
If no satellite is tracked and no position fix is obtained, the GPS II automatically shuts off after 10 minutes of inactivity.
The device will display speeds up to about 90 knots (103 mph).
