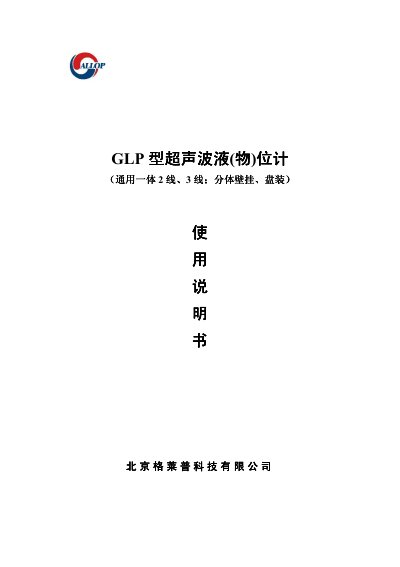

The Gallop GLP ultrasonic level meter manual provides overview, installation, self‑test, parameter settings, and troubleshooting for the non‑contact…
The GLP ultrasonic level meter from Gallop is a smart, non‑contact instrument for measuring liquid levels and solid material heights, as well as distance. It features automatic power adjustment, gain control, false‑target rejection, and temperature compensation.
This manual includes a product overview, installation diagrams, self‑test procedures, parameter codes, menu usage instructions, accessory information, performance specifications, troubleshooting guidance, and contact details. This manual is written in Chinese.
| Measurement range | 0.5–30 m |
|---|---|
| Accuracy | 0.25 % / 0.5 % |
| Resolution | 1–5 mm |
| Frequency | up to 40 kHz |
| Transmit angle | 6°–12° |
| Blind zone | 0.20–0.9 m |
| Power supply | 220 VAC or 24 VDC |
| Signal output | 4–20 mA |
| Maximum load | 750 Ω |
| Enclosure material | PA6, ABS |
| Protection rating | IP65, IP67 |
| Operating temperature | -20 °C to +55 °C |
| Installation thread | M66×3 |
It indicates that no signal has been received by the sensor.
Mount the sensor vertically, keep it away from edges and obstacles, and ensure the installation area is clear to avoid blind‑zone interference.
