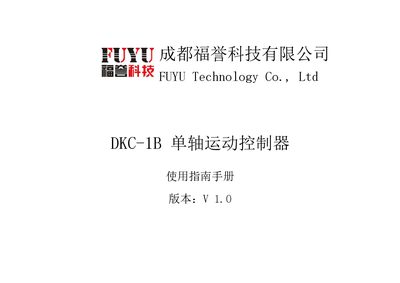

This guide provides safety precautions, wiring, control modes, limit‑switch usage and troubleshooting for the FUYU DKC‑1B single‑axis motion controller.
The FUYU DKC‑1B is a single‑axis motion controller designed for use with 24 V DC powered motors. This user guide explains how to install, wire, configure and operate the controller safely and effectively.
Key sections cover pre‑use safety notes, detailed wiring diagrams, interpretation of the controller’s dip‑switch control modes, limit‑switch principles, knob functions, and a FAQ that addresses common issues such as slow speed, unexpected stops, and direction changes. This manual is written in Chinese.
| Supply voltage | 24 V DC |
|---|---|
| Operating temperature | -10 °C to 50 °C |
| Storage temperature | -20 °C to +80 °C |
| Humidity range | 30 % RH to 80 % RH |
| Maximum vibration | 4.2 m/s² |
Check the driver’s settings and wiring, especially the dip‑switch configuration and limit‑switch connections; if needed, use control mode 1011 (step mode) to test.
Swap any two of the motor wires to reverse the rotation direction.
The limit switch provides a position signal used for zero‑return and to limit the motor’s travel.
