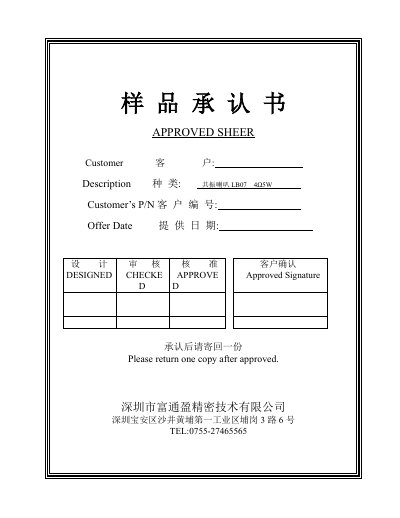

The Futong Ying LB07 4Ω5W resonant speaker datasheet provides dimensions, power ratings, impedance, frequency range and reliability test results.
The LB07 4Ω5W is a permanent‑magnet dynamic resonant speaker designed for compact audio applications. It features a 44 mm diameter diaphragm and a total height of 29 mm, making it suitable for space‑constrained installations.
Key specifications include a nominal impedance of 4 Ω, nominal input power of 5 W (maximum 10 W), a usable frequency band from 100 Hz to 15 kHz, and an output SPL of 86 dB. The speaker also meets extensive reliability tests such as continuous 10 W load for 96 hours, heat, cold and humidity endurance. This manual is written in Chinese.
| Nominal Impedance | 4 Ω ± 15 % @200 Hz |
|---|---|
| Nominal Input Power | 5 W |
| Maximum Input Power | 10 W |
| Lowest Resonance Frequency | 60 Hz ± 20 % (3.0 V) |
| Output SPL | 86 ± 3 dB (average 100‑12 kHz @ 500 m, 3 W) |
| Effective Frequency Band | 100 Hz – 15 kHz @3.0 V, 5 W |
| Distortion | ≤5 % at 5 W, 800 Hz |
The speaker has a nominal impedance of 4 Ω ± 15 % measured at 200 Hz.
It is rated for a nominal input power of 5 W and a maximum input power of 10 W.
The effective frequency band is from 100 Hz to 15 kHz when driven at 3.0 V and 5 W.
