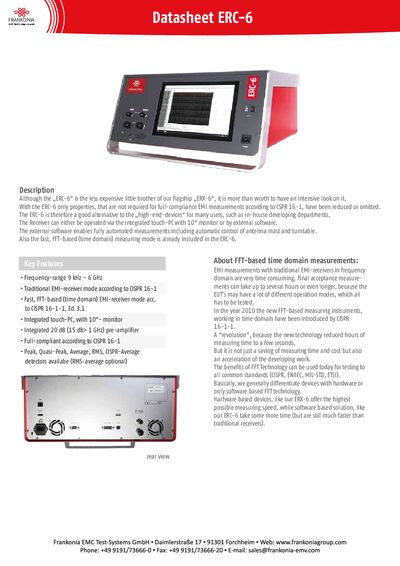

The FRANKONIA ERC-6 is a cost‑effective EMI receiver with integrated touch‑PC, FFT‑based measurements and a 10‑inch monitor, covering 9 kHz‑6 GHz.
The ERC‑6 is positioned as a lower‑cost alternative to high‑end EMI receivers, offering the essential functions required for in‑house development and testing. It can be operated via an integrated touch‑PC with a 10‑inch monitor or through external software that automates antenna mast and turntable control, and includes a fast FFT‑based time‑domain measuring mode.
Technical data provide a frequency range of 9 kHz – 6 GHz, multiple detector types (Peak, Quasi‑Peak, Average, RMS, CISPR‑Average), an integrated 20 dB pre‑amplifier, and various input‑frequency sub‑ranges with selectable filters. Physical specifications include a 2RU rack‑mount chassis (482 mm × 95 mm × 485 mm), 7 kg weight, operating temperature 0 °C – 40 °C, and a 100‑240 V AC, 25 W power supply.
| Frequency range | 9 kHz – 6 GHz |
|---|---|
| Integrated pre‑amplifier | 20 dB (15 dB > 1 GHz) |
| Detectors | Peak, Quasi‑Peak, Average, RMS, CISPR‑Average (RMS‑average optional) |
| Power supply | 100‑240 V AC, 50/60 Hz, 25 W |
| Dimensions (Rack unit) | 482 mm × 95 mm × 485 mm (2RU) |
The ERC‑6 covers a frequency range from 9 kHz to 6 GHz.
It can be operated via the integrated touch‑PC with a 10‑inch monitor or by external software that provides automated measurements.
The device offers Peak, Quasi‑Peak, Average, RMS and CISPR‑Average detectors, with an optional RMS‑average mode.
It requires a 100‑240 V AC supply at 50/60 Hz and consumes about 25 W.
