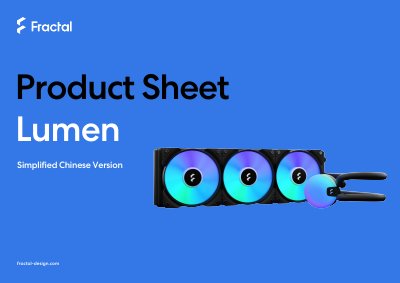

The Fractal Design Lumen product sheet details the S24 RGB, S28 RGB, and S36 RGB water‑cooling radiators, including features, specifications, and packaging…
The Lumen series offers three water‑cooling radiators (S24 RGB, S28 RGB, S36 RGB) with six addressable LEDs that can be controlled via the motherboard or a controller. The radiators feature a detachable, 90°‑rotatable top plate, pre‑coated thermal paste, and a 90° elbow joint for easy tubing.
Key specifications include copper radiators, aluminum construction, pre‑coated thermal paste, and support for a wide range of Intel and AMD CPU sockets. Each unit ships with two Aspect RGB fans, a user manual, mounting hardware, and low‑permeability nylon‑braided tubing. The product carries a five‑year warranty. This manual is written in Chinese.
| Radiator dimensions (L x W) | 79 x 67 mm |
|---|---|
| Supported Intel sockets | LGA 1150/1151/1155/1156/1200, LGA 1366/2011/2011‑3/2066 |
| Supported AMD sockets | AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 |
| Fan model | Aspect 12 RGB PWM (Aspect 14 RGB PWM for S28) |
| Fan speed | 500–2000 RPM |
| Fan noise | <10–33.2 dBA |
| Fan max airflow | 13–56 CFM |
| Fan max static pressure | 0.230–2.34 mm H2O |
| Fan MTBF | 90,000 hours |
| Pump speed | 4000 ± 10% RPM |
| Pump max pressure | 1.8 mm H2O / 17.6 kPa / 2.5 PSI |
| Pump MTBF | 50,000 hours |
| Tubing | Nylon‑braided low‑permeability rubber |
The Lumen series uses six addressable LEDs that can be operated via the motherboard or a controller.
They support common Intel sockets (LGA 1150/1151/1155/1156/1200, LGA 1366/2011/2011‑3/2066) and AMD sockets (AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2).
Each unit includes Aspect RGB PWM fans (Aspect 12 RGB PWM for S24 and S36, Aspect 14 RGB PWM for S28).
