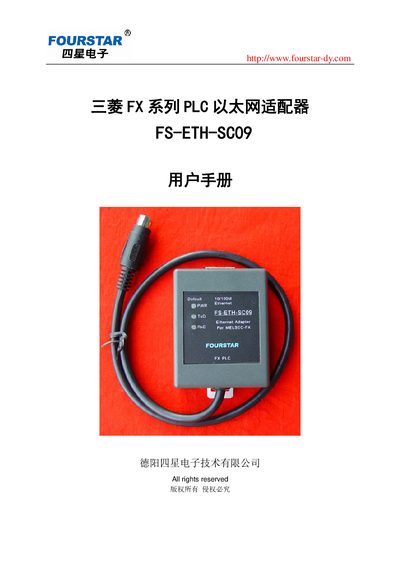

The FS-ETH-SC09 User Manual provides setup, configuration, and operation instructions for Four Star Electronics' Ethernet adapter for Mitsubishi FX series PLCs.
The FS-ETH-SC09 is an industrial‑grade Ethernet/Internet/3G adapter that enables Mitsubishi FX series PLCs to communicate over TCP/UDP networks. It features a 10/100 Mbps auto‑adaptive Ethernet port, isolated RS422 interface, and built‑in flash for parameter storage.
The manual covers product features, external dimensions and pin definitions, internal block diagram, parameter configuration, GX Developer software settings, LAN and Internet usage, 3G wireless operation, ordering information, and a brief Ethernet fundamentals appendix. This manual is written in Chinese.
| Ethernet Port Speed | 10 Mbps / 100 Mbps auto‑adaptive |
|---|---|
| RS422 Interface Isolation | 1500 VDC |
| Operating Temperature | -40 °C to +80 °C |
| Dimensions | 65 mm × 51 mm × 26 mm |
| Supported Network Protocols | TCP Server, TCP Client, UDP Uni‑Cast, UDP Multi‑Cast |
| Baud Rate Range | 110 bps – 115200 bps |
| Flash Memory | Internal flash for permanent parameter storage |
It operates from –40 °C to +80 °C (industrial grade).
It supports TCP Server, TCP Client, UDP Uni‑Cast and UDP Multi‑Cast modes.
