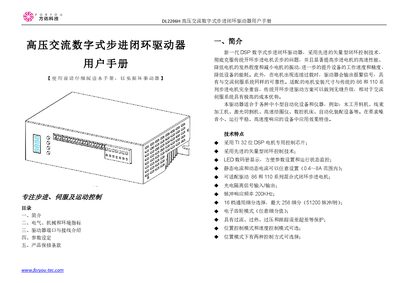

The manual introduces the DL2206H driver, its electrical/mechanical specs, wiring, parameter settings and warranty.
The DL2206H is a high‑voltage AC digital stepper closed‑loop driver that uses a 32‑bit DSP and vector‑control technology to improve speed, reduce heat and vibration, and provide reliable operation for small‑to‑medium automation equipment. It supports 86/110 series hybrid closed‑loop stepper motors and offers multiple protection features.
The document contains an introduction, electrical/mechanical and environmental specifications, detailed port and wiring diagrams, parameter configuration procedures, alarm codes, mode settings, and warranty terms, guiding users through installation, setup and maintenance. This manual is written in Chinese.
| Continuous output current | 0.4 – 6 A |
|---|---|
| Input voltage (AC) | 80 – 230 V |
| Logic input current | 7 – 20 mA |
| Pulse frequency | 0 – 200 kHz |
| Insulation resistance | 100 MΩ |
| Encoder supply current | 50 mA |
| Weight | 1450 g |
| Operating temperature range | -10 °C to 50 °C |
| Storage temperature range | -20 °C to +70 °C |
| Cooling method | Built‑in fan (starts above 40 °C) |
The driver can deliver a continuous output current from 0.4 A up to 6 A.
It operates from 80 V to 230 V AC.
The unit has a built‑in fan that starts when the internal temperature exceeds 40 °C.
The product comes with a one‑year warranty starting from the date of shipment.
