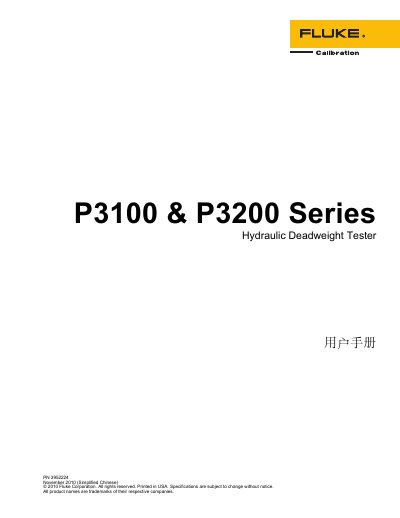

Fluke P3100 & P3200 Series Hydraulic Deadweight Tester User Manual

This user manual covers the operation, maintenance, and troubleshooting of Fluke P3100 and P3200 series hydraulic deadweight testers.

Brand: Fluke
Category: Other Electronics
Document type: User Manual
Language: Chinese
Pages: 56
File format: PDF
File size: 1.6 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: B460EBB2DA994BD349BC4CC8F36824BC
PDF: Fluke P3100 & P3200 Series Hydraulic Deadweight Tester User Manual PDF

About this manual

This manual provides instructions for the Fluke P3100 and P3200 series hydraulic deadweight testers, covering oil-operated and distilled water-operated models. It includes safety guidelines, operational procedures, and environmental correction factors for gravity and temperature. This manual is written in Chinese.

What's inside

Introduction
Safety Precautions
Operating Specifications
Preparation
Operation
Calibration
Maintenance and Repair
Troubleshooting
Storage and Shipping
Accessories

Specifications

Operating Temperature	18 to 28 °C (64 to 82 °F)
Storage Temperature	10 to 50 °C (50 to 122 °F)

Frequently asked questions

What are the included pressure instrument models?

The manual covers oil-operated models P3111, P3112, P3113, P3114, P3115, P3116, P3123, P3124, and P3125, and distilled water-operated models P3211, P3213, P3214, P3223, and P3224.

How should the piston be cleaned?

Use a non-linting, non-abrasive chamois or absorbent cloth to wipe the piston lengthwise. For water-operated testers, the piston can be cleaned in a suitable solvent, but O-rings must not be immersed.
