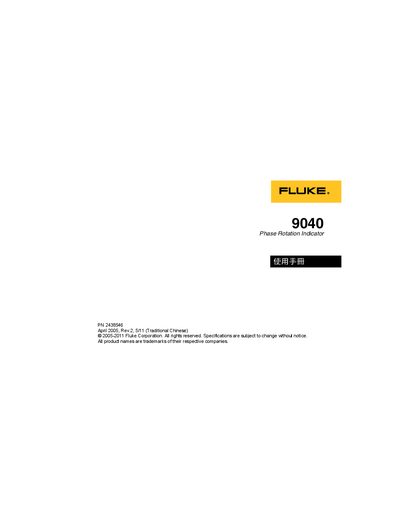

This manual provides operating instructions, safety guidelines, and specifications for the Fluke 9040 handheld phase rotation indicator used in three-phase…
The Fluke 9040 is a handheld instrument designed to detect rotating magnetic fields in three-phase systems. The device comes with various probe configurations depending on the region (standard, UK, or EUR) and includes safety instructions for handling dangerous voltages.
To determine phase rotation, connect the test probes to the three main phases of the system. A green 'On' light indicates readiness, while a separate indicator shows whether the magnetic field is rotating clockwise or counter-clockwise. The device operates using power from the equipment under test. This manual is written in Chinese.
| Operating Temperature | 0 °C to +40 °C |
|---|---|
| Protection Type | IP40 |
| Size | 124 x 61 x 27 mm (4.9 x 2.4 x 1.1 in) |
| Weight | 200 g (0.44 lb) |
| Fuse Rating | 500 mA / 1000 V / Fast-blow |
| Maximum Operating Voltage (Ume) | 690 V |
| Protection Category | CAT III/600 V (grounded), CAT IV/300 V (grounded) |
| Rated Voltage for Rotation Detection | 40 to 690 V ac |
| Frequency Range | 15 to 400 Hz |
Do not touch conductors with voltages greater than 30 V ac rms, 42 V ac peak, or 60 V dc. Always keep fingers behind the probe finger guards.
Connect test probes to the three main phases. The 'Clockwise' or 'Counter-clockwise' indicator light will illuminate to show the magnetic field direction.
No, you must not use this product near explosive gases and vapors or in damp environments.
