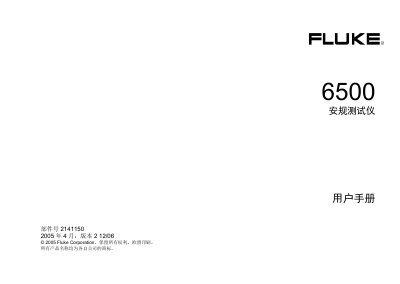

This manual provides operating instructions, safety guidelines, and technical specifications for the Fluke 6500 safety tester used to verify electrical…
The Fluke 6500 is a safety tester designed to perform various tests on portable and fixed electrical devices. Key functions include L-N AC voltage testing, insulation resistance measurement (up to 299 MΩ), earth continuity checks (200 mA and 25 A), leakage current measurements, IEC cable verification, and PELV system testing.
The device features a graphical LCD display, RS-232 connectivity for data transfer, and supports automatic test sequences. Users can configure settings such as date/time, location text, and access codes. The manual details the operation of the front panel connectors, button functions, and troubleshooting steps. This manual is written in Chinese.
| Dimensions | 200 mm (L) x 275 mm (W) x 100 mm (H) |
|---|---|
| Weight | 3.0 kg |
| Operating Altitude | 0 - 2000 m |
| Power Supply | 240 V + 10 % - 15 %, 50 Hz ± 2 % |
| Insulation Resistance Range | 0.1 - 299 MΩ |
The accuracy is ± (5% + 2 digits) for the range 0.1 - 50 MΩ, and ± (10% + 2 digits) for 50 - 299 MΩ.
No, do not operate the tester in environments with explosive gases, vapors, or dust.
The maximum input power voltage is 264 V.
