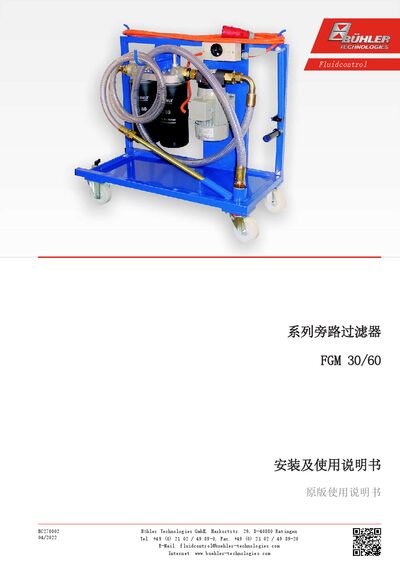

Installation, operation, maintenance and safety instructions for the Fluidcontrol FGM 30/60 bypass filter.
This manual provides complete guidance for the Fluidcontrol FGM 30/60 bypass filter, covering compliance, ordering, installation, hydraulic and electrical connections, and safe operation. It also includes maintenance procedures, fault diagnosis and disposal instructions.
The document contains technical specifications, torque values for cable and screw connections, and detailed safety warnings to ensure proper handling and service by authorized personnel. This manual is written in Chinese.
| Pump type | Sensitive GEA pump |
|---|---|
| Motor power (FGM 30) | 0.75 kW / 1.6 A |
| Motor power (FGM 60) | 2.2 kW / 4.6 A |
| Flow rate | 29 l/min (FGM 30) / 58 l/min (FGM 60) |
| Maximum working pressure | 7 bar |
| Noise level | 61 dB(A) (FGM 30) / 64 dB(A) (FGM 60) |
| Weight | ≈ 60 kg (FGM 30) / ≈ 70 kg (FGM 60) |
| Oil temperature range | Up to 50 °C, short‑term up to 65 °C |
The filter can operate with oil temperatures up to 50 °C, and for short periods up to 65 °C.
