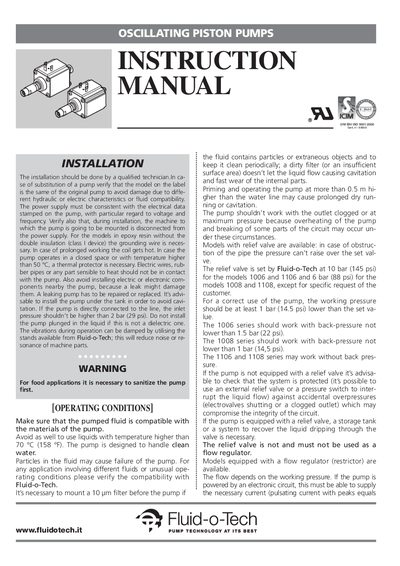

This manual provides operating, installation, maintenance, and safety instructions for Fluid-o-Tech oscillating piston pumps (models 1006, 1106, 1008, 1108).
The instruction manual describes the operating conditions for Fluid-o-Tech oscillating piston pumps, including fluid compatibility, temperature limits, filter requirements, and pressure settings. It explains the relief‑valve pressures (10 bar for models 1006/1106 and 6 bar for models 1008/1108) and back‑pressure recommendations for each series.
Installation guidelines cover electrical supply, grounding, mounting, and safety precautions such as avoiding dry‑run, using thermal protectors, and keeping the pump away from heat sources. The document also outlines maintenance practices, spare‑part replacement, warranty terms, and certification information.
| Relief valve pressure (models 1006, 1106) | 10 bar (145 psi) |
|---|---|
| Maximum inlet pressure | 2 bar (29 psi) |
| Maximum fluid temperature | 70 °C (158 °F) |
| Continuous operation (70 W coil) | 5 min on, 1 min off |
The relief valve for model 1006 is set to 10 bar (145 psi).
It can run for 5 minutes continuously, followed by a 1‑minute stop.
The inlet pressure must not exceed 2 bar (29 psi).
Fluids hotter than 70 °C (158 °F) should not be used.
