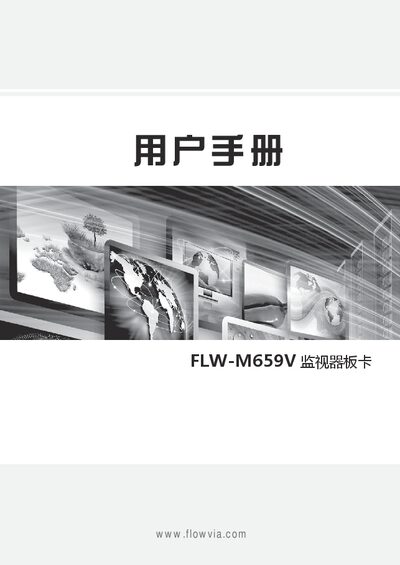

The Flowvia M659V monitor board user manual provides setup, interface, and software instructions for the TFT LCD driver board.
This manual describes the Flowvia M659V monitor board, a driver card for small‑to‑medium size digital TFT LCD panels. It includes hardware descriptions, interface functions, PCB dimensions, and power specifications, as well as guidance for software upgrades and PC software usage.
The document also covers remote control operation, image color adjustment, and detailed wiring diagrams for power, LVDS, and video inputs, helping users install and operate the board in broadcast, medical, education, or surveillance applications. This manual is written in Chinese.
| Supported LVDS | 8/10‑bit dual LVDS |
|---|---|
| Maximum Output Resolution | 1920×1080 |
| Audio I/O | 2 CVBS loop‑out, 2×2 W speaker output, 1 LVDS signal |
| PCB Size | 1.6 mm × 240 mm × 84 mm (H × L × W) |
Log in with the administrator password (123321) to open the color adjustment panel, where you can modify brightness, contrast, saturation, and sharpness for each channel.
