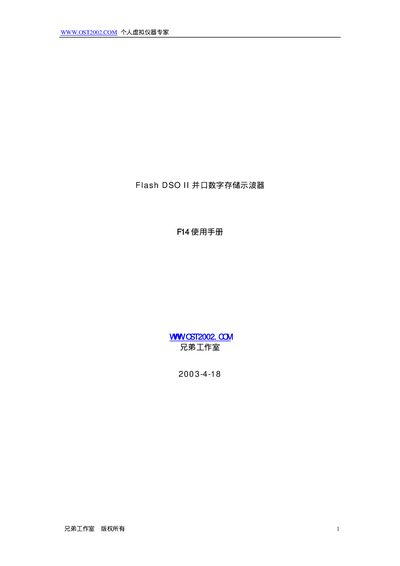

The Flash DSO II 40M user manual provides system overview, setup steps, basic operation, and troubleshooting for the 40 MHz digital storage oscilloscope.
The manual begins with a system overview of the Flash DSO II 40M digital storage oscilloscope, describing its 40 MHz bandwidth, 9 V power supply, BNC input, and 800×600 32‑bit color display. It also lists supported video standards such as PAL, NTSC, VCD and CD.
Subsequent sections cover how to start the instrument, configure time base and vertical settings, capture and display waveforms, use the FFT function, and address common troubleshooting questions. This manual is written in Chinese.
| Power supply | 9 V 200 mA/300 mA DC |
|---|---|
| Display resolution | 800×600 32‑bit color |
| Supported video standards | PAL, NTSC, VCD, CD |
The device supports PAL, NTSC, VCD and CD video standards.
