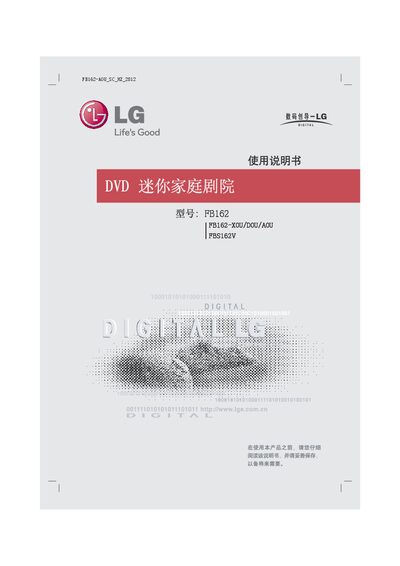

This manual provides safety warnings, installation steps, operation instructions and troubleshooting for the FB162‑A0U_SC_HZ_2812 mini home theater DVD player.
The manual begins with safety warnings about laser radiation, electrical shock and proper ventilation, and explains the required power supply and handling precautions. It also describes the front‑panel controls, remote‑control functions and the layout of connectors for audio, video and antenna.
Further sections cover installation and setup (TV and component video connections), clock and timer configuration, sleep‑mode operation, supported disc formats, and a detailed troubleshooting guide. Technical specifications such as dimensions, weight, power requirements and audio/video performance are listed at the end. This manual is written in Chinese.
| Net weight | 3.31 kg |
|---|---|
| External dimensions (W x H x D) | 170 x 253 x 265 mm |
| Operating temperature | 5°C to 35°C |
| Laser wavelength | 650 nm |
| Audio frequency response | 40 Hz to 2 kHz |
| Audio signal‑to‑noise ratio | > 75 dB |
| Audio harmonic distortion | 0.5 % |
| Video output level | 1.0 V p‑p, 75 Ω |
| Speaker output power | 80 W + 80 W |
