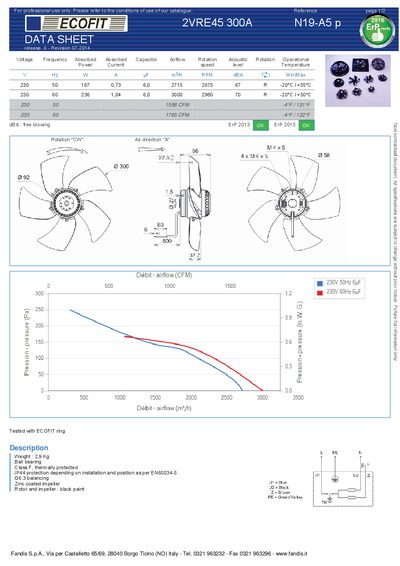

Technical data sheet for the Fandis 2VRE45 300A N19-A5 fan, detailing voltage, power, airflow, speed, acoustic level and compliance.
The Fandis 2VRE45 300A N19-A5 is a professional‑grade fan designed for regular applications and complies with the ErP directives (2013, 2015). It features a zinc‑coated impeller, ball bearing, IP44 protection and a thermally protected Class F motor.
Key performance figures include a nominal voltage of 230 V, 50 Hz frequency, 0.211 kW power consumption, 1824 m³/h airflow, 2502 RPM rotation speed and an acoustic level of 67 dBA. The unit operates between –20 °C and +55 °C and weighs 2.9 kg.
| Voltage | 230 V |
|---|---|
| Frequency | 50 Hz |
| Power | 0.211 kW |
| Airflow | 1824 m³/h |
| Rotation speed | 2502 RPM |
| Weight | 2.9 kg |
| IP rating | IP44 |
| Impeller coating | Zinc coated |
| Bearing type | Ball bearing |
| Motor class | Class F, thermally protected |
The fan operates at 230 V and 50 Hz (or 60 Hz for the optional version).
It delivers an airflow of 1824 m³/h at its optimal efficiency point.
Yes, the fan meets the ErP 2013 and ErP 2015 requirements.
