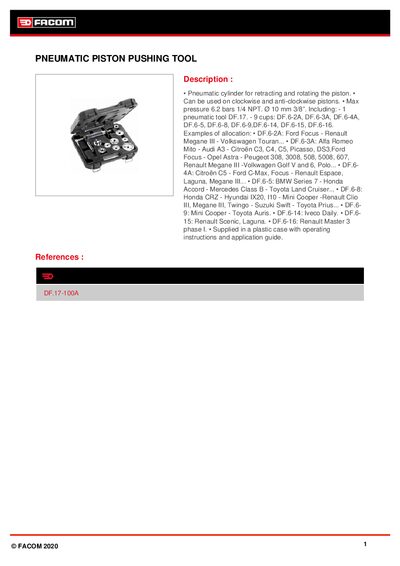

The FACOM DF.17-100A pneumatic piston pushing tool is a cylinder for retracting and rotating pistons, supporting up to 6.2 bars pressure and supplied with…
The DF.17-100A is a pneumatic cylinder designed to retract and rotate pistons in both clockwise and anti‑clockwise directions. It operates at a maximum pressure of 6.2 bars (1/4 NPT) and has a bore size of Ø 10 mm (3/8”).
The tool is supplied in a plastic case and includes one pneumatic tool (DF.17) plus nine interchangeable cups (DF.6‑2A to DF.6‑16) that fit a wide range of vehicle models such as Ford Focus, Renault Megane, Volkswagen Golf, BMW Series 7, and many others. An operating instruction sheet and application guide are also provided.
| Maximum pressure | 6.2 bars 1/4 NPT |
|---|---|
| Bore diameter | Ø 10 mm (3/8") |
The tool can be used up to a maximum pressure of 6.2 bars (1/4 NPT).
The package contains one pneumatic tool (DF.17) and nine cups (DF.6‑2A, DF.6‑3A, DF.6‑4A, DF.6‑5, DF.6‑8, DF.6‑9, DF.6‑14, DF.6‑15, DF.6‑16).
