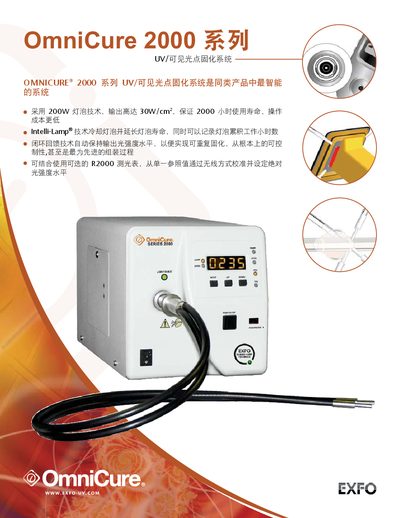

The EXFO OmniCure 2000 Series UV/visible light spot curing system offers 200 W lamp output up to 30 W/cm², 2000‑hour lamp life, Intelli‑Lamp cooling, and…
The OmniCure 2000 Series is a smart UV/visible light spot curing system that uses a 200 W lamp to deliver up to 30 W/cm² of radiant power. It features Intelli‑Lamp® technology for lamp cooling and lifetime tracking, and a closed‑loop feedback system that automatically maintains the selected light intensity for consistent results.
The system can be calibrated with an optional R2000 light meter via wireless or serial communication, and it supports PLC or PC control through a 15‑pin I/O port. Optional band‑pass filters allow wavelength customization for a wide range of applications, including non‑stick surface curing of acrylic resins. The unit complies with CE, IEC, Canadian and US standards and includes safety features such as over‑heat protection and password lock. This manual is written in Chinese.
| Dimensions (L×W×H) | 33.8 cm × 18.0 cm × 20.1 cm |
|---|---|
| Weight | 9.9 lb (4.5 kg) |
| Lamp power | 200 W |
| Maximum output intensity | 30 W/cm² |
| Lamp lifetime guarantee | 2000 hours |
| Standard wavelength range | 320‑500 nm |
| Optional wavelength ranges | 250‑450 nm, 365 nm, 320‑390 nm, 400‑500 nm, 250‑600 nm |
| Power input | 100‑120 VAC / 200‑240 VAC, 50/60 Hz |
| Pre‑heat time | 4 minutes (typical) |
| Control interface | 15‑pin I/O port |
The lamp is guaranteed to last 2000 hours.
It can be calibrated using the optional R2000 light meter via wireless or serial communication.
The unit operates on 100‑120 VAC or 200‑240 VAC at 50/60 Hz.
Yes, optional band‑pass filters allow selection of specific wavelength ranges for particular applications.
