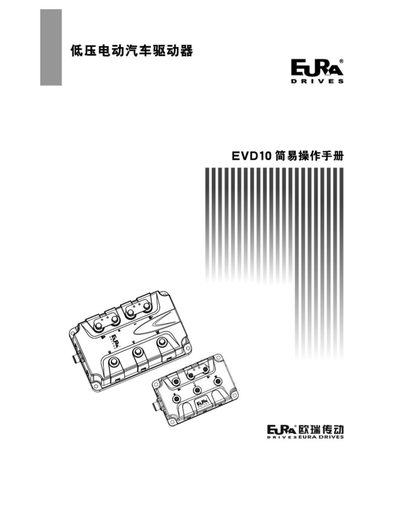

User manual for the Euradrives EVD10 electric vehicle drive, covering specifications, installation, wiring, and troubleshooting.
The EVD10 series electric vehicle drive, developed by Euradrives, is designed for low‑voltage electric vehicles such as sightseeing cars, low‑speed EVs, and light transport vehicles. It supports a wide range of input voltages and motor types, providing precise torque control.
The manual includes design specifications, installation and wiring instructions, common fault troubleshooting, upgrade records, and user warranty information, helping installers and technicians configure and maintain the drive safely and efficiently. This manual is written in Chinese.
| Input Voltage | 24~144 V DC |
|---|---|
| Supported Motor Types | Brushless DC, Permanent‑magnet synchronous, Three‑phase AC induction |
| Control Mode | Torque control |
| Efficiency | > 98 % |
| Torque Response Time | < 20 ms |
| Cooling Type | Self‑cooled (CP1) |
| Communication Interface | CAN (F4 proprietary protocol) |
The motor encoder may be abnormal (power issue, broken wire, wrong wiring, or damage). Replace the encoder or its wiring and correct the AB phase order.
The key signal, gear signal, or accelerator signal is not closed or outputting. Ensure the wiring and external control connections are reliable.
