Eurad Drives SD20 Servo Drive User Manual

This manual provides installation, operation, fault diagnosis, and maintenance instructions for the Eurad Drives SD20 servo drive.

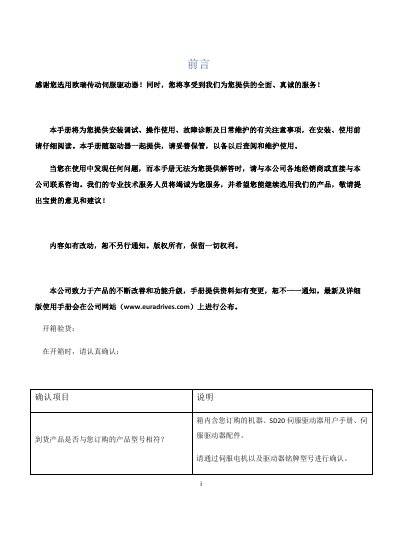

Eurad Drives SD20 Servo Drive User Manual - cover page
Brand
Eurad Drives
Document type
User Manual
Language
Chinese
Pages
464
File format
PDF
File size
6.5 MB
Published
17 October, 2026
Updated
17 October, 2026
MD5 checksum
BA3077913B2795076F9E6798DA9F95F9
PDF
Eurad Drives SD20 Servo Drive User Manual PDF

About this manual

The Eurad Drives SD20 series is a servo drive designed to control servo motors. The system supports various control modes including profile position (PP), profile velocity (PV), profile torque (PT), homing (HM), and interpolation (IP). It features a CANopen communication protocol compliant with CiA-301 V4.02 standards. This manual is written in Chinese.

What's inside

  • Safety Precautions
  • Product Information
  • Installation
  • Wiring
  • Panel Operation
  • User Parameters
  • CANopen Communication
  • MODBUS Communication

Specifications

Input Power380V AC -10～+10% 50/60Hz
Cooling MethodForced Air Cooling
Protection RatingIP20
Speed Response Frequency300Hz
CANopen Baud Rate500Kbit/s (Default)

Frequently asked questions

What is the warranty period for this product?

The warranty period is twelve months from the date of manufacture.

Does the drive support external braking resistors?

Yes, an external braking resistor can be connected but must be purchased separately.

Download PDF (6.5 MB)
