The EUC701 DMX512 decoder dimmer converts DMX‑512 signals to 0‑10V/1‑10V analog outputs with 8 channels, each delivering up to 200 mA and optional relay drive.

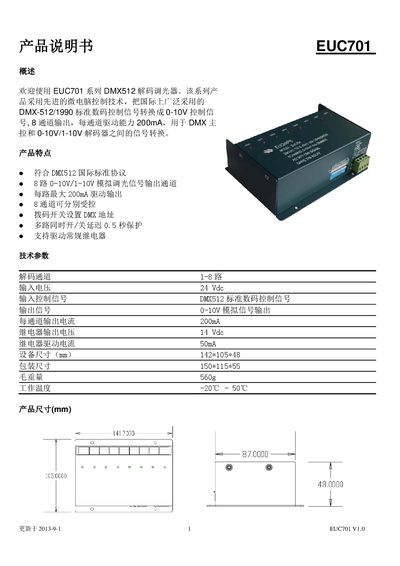

The EUC701 series DMX512 decoder dimmer uses a micro‑computer controller to translate standard DMX‑512 digital control signals into 0‑10V (or 1‑10V) analog signals. It provides eight independent channels, each capable of 200 mA output current, and includes relay outputs for driving conventional relays.
The device operates from a 24 VDC supply, supports dip‑switch address setting, and offers configurable relay drive thresholds (5 % or 10 %). It is intended for use between a DMX master controller and 0‑10V/1‑10V dimmers or LED fixtures. This manual is written in Chinese.
| Input Voltage | 24 VDC |
|---|---|
| Output Signal | 0‑10V analog |
| Per‑Channel Output Current | 200 mA |
| Relay Output Voltage | 14 VDC |
| Relay Drive Current | 50 mA |
| Device Dimensions (mm) | 142 × 105 × 48 |
| Packaging Dimensions (mm) | 150 × 115 × 55 |
| Gross Weight | 560 g |
| Operating Temperature | -20 °C to 50 °C |
Each channel can deliver up to 200 mA of current.
The DMX base address is set using dip switches 1 through 9.
When the dimming level is below the set threshold, the relay output provides 14 VDC.
