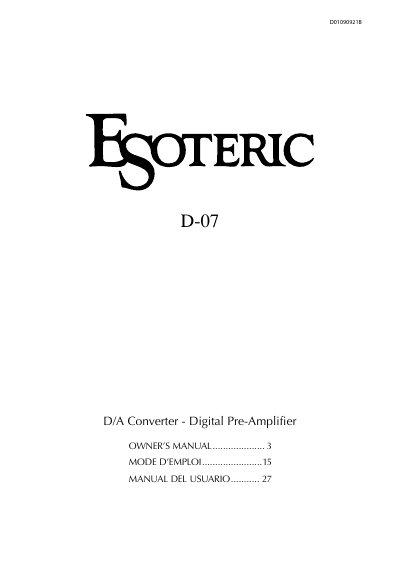

This manual provides setup, operation, and maintenance instructions for the Esoteric D-07 Digital Pre-Amplifier.
The Esoteric D-07 is a digital pre-amplifier designed to convert digital audio signals into analog output. It supports various input formats including XLR, RCA, Optical, and USB connections with sampling frequencies up to 192 kHz for standard inputs and higher rates via specific configurations.
The unit features front-panel controls for power, volume adjustment from mute to 0dB, and source selection. Users can access setup modes to configure settings such as remote control enablement and factory default restoration. The manual details connection procedures, basic operation steps, troubleshooting guides, and safety precautions.
| Output impedance (XLR) | 100 Ω |
|---|---|
| Maximum Output level (XLR) | 2.2 Vrms |
| Frequency response | 5 Hz to 40 kHz |
| Signal-to-Noise Ratio (S/N) | 130 dB |
| Total harmonic distortion | 0.001% (1 kHz) |
| Power supply (Europe model) | AC 230 V, 50 Hz |
| Weight | 9.5 kg (20.9 lb) |
The display flashes when no digital signal is being input.
You must leave at least 20 cm (8") of space above the unit.
The maximum output level is 2.2 Vrms at 1 kHz.
The unit supports 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz.
