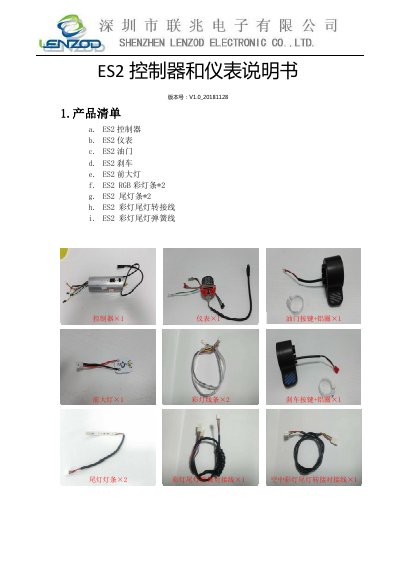

User manual for the ES2 controller and instrument, covering product list, wiring diagrams, operation functions, parameters, and error codes.
This manual describes the ES2 controller and instrument system, listing included components such as the controller, instrument, throttle, brake, and various lighting accessories. It provides detailed wiring instructions for the controller and instrument, identifying connections for the motor, hall sensor, lights, communication, charger, and battery. This manual is written in Chinese.
| Rated Voltage | 36V |
|---|---|
| Rated Bus Current | 12A |
| Undervoltage Protection | 32V±1V |
| Overvoltage Protection | 45V±1V |
| Max Phase Current Limit | 60A±2A |
| Static Input Current (Off) | 10uA or less |
Press the button once briefly while the device is off to hear the startup beep and see the display.
Press and hold the button for 0.5 seconds while the device is on to hear the shutdown beep and turn off the display.
Error code E1 indicates a throttle fault.
Error code E6 indicates low battery voltage (undervoltage).
