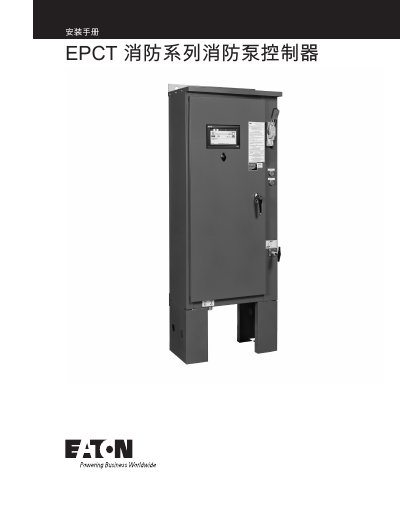

Installation manual for the EPCT MN124016SC fire pump controller, covering safety, wiring, hardware, programming, and operation.
This guide provides safety information, warranty details, and an overview of the EPCT MN124016SC fire pump controller. It is intended for qualified personnel who install, commission, or maintain the controller.
The document walks the reader through mechanical installation, electrical wiring, hardware components, programming options, automatic transfer switch (ATS) integration, optional add‑on boards, and includes extensive appendices with menu structures, error codes, and cable references. This manual is written in Chinese.
| Touchscreen display | 5:3 aspect ratio, 800x480 resolution, 7‑inch LCD |
|---|---|
| Non‑volatile memory capacity | Up to 65,000 events |
| Recommended wire size | #14 AWG for all controller wiring |
| Backup battery life | 10‑year replaceable lithium battery |
The manual specifies using #14 AWG wire for all controller wiring.
The controller’s non‑volatile memory can record up to 65,000 events.
It has a 5:3 aspect ratio, 800 × 480 resolution, and a 7‑inch LCD display.
The backup battery is a replaceable lithium type rated for 10 years of service.
