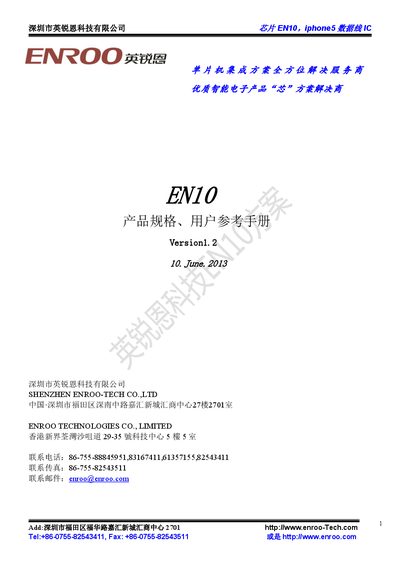

The EN10 chip datasheet from Enroo details features, electrical characteristics, pin definitions, testing procedures and usage guidelines for…
The EN10 is a static CMOS controller designed for Lightning‑enabled Apple devices such as iPhone 5, iPad mini and iPod nano. It offers low power consumption, small 6‑lead SOT23‑6 package, and supports full charge and data transfer functions.
The document provides pin definitions, electrical specifications, wiring instructions, test fixture diagrams, usage instructions, and upgrade procedures, helping manufacturers integrate and verify the chip in data‑cable solutions. This manual is written in Chinese.
| Operating Voltage (VDD) Min | 1.8 V |
|---|---|
| Operating Voltage (VDD) Max | 6.0 V |
| Typical Input Voltage | 5 V |
| Logic Low Voltage (VIL, TTL) | 1.0 V |
| Logic High Voltage (VIH, TTL) | 2.2 V |
| Output High Voltage (VOH) at 5 V | 3.5 V (Ioh = -30 mA) |
| Output Low Voltage (VOL) at 5 V | 0.8 V (Iol = 30 mA) |
The EN10 uses a SOT23‑6/DFN6 package with pins VCC, GP2, GP0, GP3, GND and GP1.
If the 8‑pin Lightning head is shorted, the chip automatically detects the fault and shuts off power to prevent damage.
Testing requires a DC input of 9‑12 V with a current below 1 A.
The EN10 supports iPhone 5, iPhone 5C, iPhone 5S, iPhone 6, iPhone 6 Plus, iPad mini, iPad Air, iPad 4, iPod nano and other Lightning‑enabled devices.
