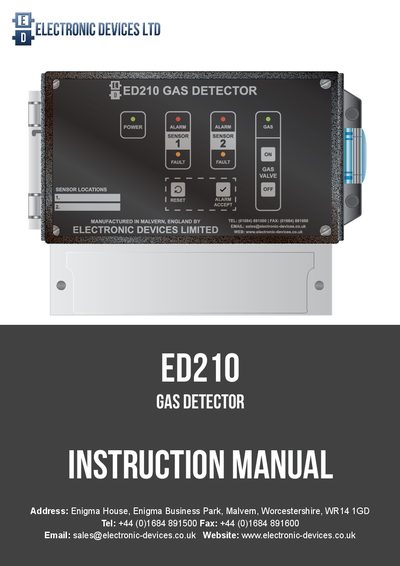

The ED210 gas detector manual provides installation, operation, calibration and safety instructions for the 12 V, 24 V and 240 V models.
The ED210 is a fixed‑installation flammable gas detector that signals gas concentrations well below the lower explosive limit. It can be supplied in 12 V DC, 24 V DC or 240 V AC versions and supports a range of compatible sensors, including explosion‑proof types.
The manual covers specifications, wiring diagrams, suitable sensors, enclosure dimensions, installation steps, operation and testing procedures, calibration guidance, and reaction to various gases. Safety warnings and wiring details are provided for competent personnel.
| Power input versions | 12VDC, 24VDC and 240VDC |
|---|---|
| Typical standby current consumption | 65 mA |
| Standby with valve on current | 105 mA |
| Alarm condition current (both zones) | 100 mA |
| Enclosure width | 235 mm |
| Input voltage range (12 V version) | 10.5 V to 14 V |
| Maximum valve pressure | 1.5 PSI |
The ED210 is available for 12 V DC, 24 V DC and 240 V AC operation.
Typical standby current consumption is 65 mA.
The valve can control up to 1.5 PSI maximum.
