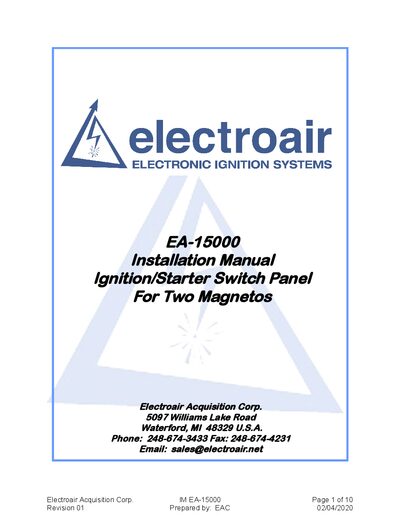

Installation guide for the Electroair EA-15000 Ignition/Starter Switch Panel, covering kit contents, precautions, and step‑by‑step aircraft installation.
This manual provides a complete step‑by‑step process for installing the Electroair EA-15000 Ignition/Starter Switch Panel on aircraft. It includes an overview of the panel, kit description, required tools, and safety precautions to ensure a correct and safe installation.
The guide details removal of the existing rotary key switch, preparation of the instrument panel cutout, wiring connections for both magnetos and starter switch, and final verification procedures such as a ground run‑up to confirm proper starter function and magneto RPM drop.
| Electrical system voltage | 12V or 24V |
|---|---|
| Maximum current draw | 0.75 A |
