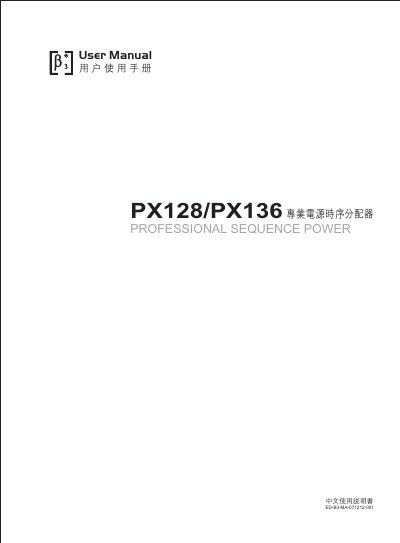

The ELDER PX128+ and PX136+ professional power sequence distributor user manual provides setup, operation, safety, maintenance, and specifications.
This manual introduces the ELDER PX128+ and PX136+ professional power sequence distributors, which split a main power input into eight (or six) controlled output channels and can be cascaded for larger systems. It describes the front‑panel controls, rear‑panel connections, and the internal micro‑processor that manages sequential power‑on and power‑off.
Safety, installation, and maintenance procedures are detailed, including warnings about high voltage, proper ventilation, correct mains voltage, and the need to unplug the unit when not in use. The document also covers cascading multiple units, troubleshooting common faults, and provides the full technical specifications of the devices. This manual is written in Chinese.
| Maximum input power | 1016KW |
|---|---|
| Operating voltage | 220V 50Hz/60Hz |
| Dimensions (L×W×H) | 484 × 222 × 44.5 mm |
| Package dimensions (L×W×H) | 555 × 310 × 78 mm |
Do not open the case because high voltage is present, keep the unit away from rain or moisture, ensure proper ventilation, match the local mains voltage, unplug the power plug when not in use, and avoid over‑loading the device.
The PX128+ provides eight independent power output channels.
Connect the cascade input and output sockets of each unit, ensure all sequence switches are turned off before linking, then control all units from the first (master) unit’s switches.
