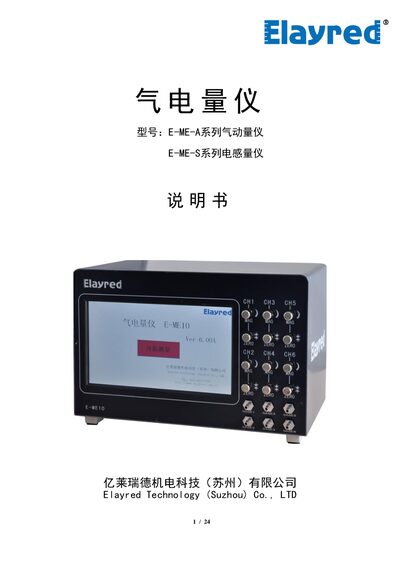

The Elayred E-ME-A and E-ME-S measurement instrument manual provides setup, operation, and maintenance instructions.
The E-ME series includes the E-ME-A pneumatic gauge and the E-ME-S inductive gauge, both featuring a full‑touch control panel with IP55 waterproof rating and expandable I/O and USB interfaces for data export. These multi‑channel instruments are designed for precise, fast measurement to improve quality control.
This manual covers the instrument overview, selection guidance, key features, technical specifications, appearance, software usage, measurement system settings, data export procedures, warranty information, and safety precautions. Detailed instructions are provided for login, program selection, parameter configuration, resolution settings, storage options, and troubleshooting. This manual is written in Chinese.
| Protection rating | IP55 |
|---|---|
| USB interface | USB port for flash‑drive data export |
| Resolution options | 0.1 μm, 0.2 μm, 0.5 μm, 1.0 μm selectable |
| Minimum delay time for storage | ≥0.5 s |
| Warranty period | 1 year |
Insert a USB flash drive into the USB port, set the file name and time range, then click the Export button; the data will be saved as an Excel file on the drive.
The delay time should be at least 0.5 seconds to ensure accurate measurement values.
